Product adaptation instructions:
ØProtection of 6 independent battery box units
Ø One fire detection point is set in the unit
Ø One fire extinguishing agent injection port is set in the unit
Ø Fire extinguishing agent spray time 1 minute 30 seconds
ØThe gap of the protected battery is less than 240L
Ø One cooling agent injection port is set in the unit
ØInstall the injection port according to the demand
ØAutomatic injection of cooling agent

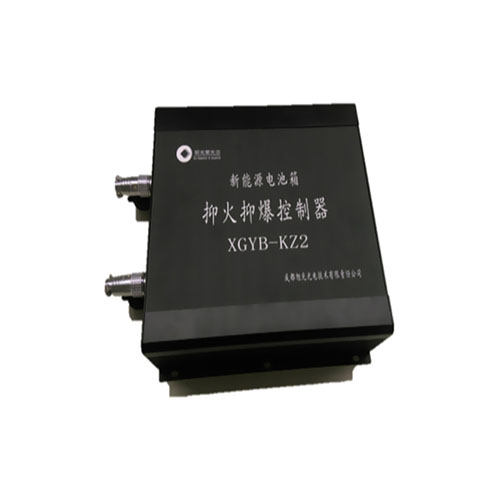

Host technical description:
Built-in high-efficiency Class A foam fire extinguishing agent
Foam fire extinguishing dose 120L
System rated pressure 0.35MPa
The oxygen barrier stability time of fire extinguishing agent is more than 10 minutes
Host size: 640*675*170mm
Technical description of fire extinguishing terminal device:
Infrared temperature detection alarm UV detection alarm
Smoke detection alarm Dimensions: 200*140*70mm
Technical description of cooling terminal device:
Automatic injection of cooling agent once for 10 seconds
Dimensions: 160*140*70mm
